Quarry Demand Manager — Shared database

LIVE PRODUCTION PRIORITIES

Ready for the next cut

Produce next

Open demand ordered by lateness, priority, and required date.

Net quarry production

Demand still requiring production after qualifying available/reserved inventory is considered.

Inventory can satisfy

Existing blocks that appear to meet open demand.

Active loaves

Blue / green = demand · Yellow = stock · Gray = loss

Changed today

Production, fulfillment, rejection, and edits.

Block Demand

Create demand by block size or by cubic foot. A demand can require both block count and total cube.

Demand	Material	Requirement	Fulfilled	Due	Status	Planning	Actions

Block Inventory

Finished physical blocks. Weight and cube are calculated from dimensions and stone density.

Block #	Material	Loaf	Dimensions	Cube	Weight	Status	Demand	Notes	Actions

Loaves

Loaf production, physical dimensions, blocks produced, and yield.

Loaf #	Material	Dimensions	Gross Cube	Stage	Blocks	Planned Cube	Planned Recovery	Remnant / Loss	Actions

Block Demand

Only open demand compatible with the selected loaf is offered for layout.

Existing loaf

Loaf Layout

Select an existing loaf to begin.

DRILL STATIONS: Measure every V station from the LEFT loaf edge. Measure every H station from the TOP loaf edge. Values are the center of the drill / wedge line.

Select a loaf and place demanded blocks

Blue demand Green demand Target stock block▧ Gray = remnant / split loss Drill / wedge centers — dots ≈ 1 ft apart

Blocks are laid out on the tipped loaf face. The smallest loaf dimension is treated as depth. Blocks may rotate 90°. The configured split allowance is reserved between adjacent blocks. Auto Layout places compatible demand from every open job first. Requested blocks are never enlarged simply to consume the loaf. Pull a demanded block’s white edge handles to align drill lines. Auto Layout may enlarge a block within its saved oversize allowances to align drill lines. Manual size changes require requester approval. Changes are saved on the planned block. Use Fill Rest: Minnesota or Fill Rest: Raymond afterward. Gray remnants are loss, not blocks. Drill / wedge lines are then generated to free both the requested blocks and useful stock blocks.

History

Local audit trail. Completed and archived demand remain searchable.

Date	Type	Record	Action	Details

Material & shipping settings

These defaults drive block weight, cube planning, and advisory warnings.

Sierra White density (lb/ft³)

Default shipping max (lb)

Shipping block cube target / Minnesota limit (ft³)

A — Minnesota minimum length (ft)

A — Minnesota maximum length (ft)

B — Minnesota minimum width (ft)

B — Minnesota maximum width (ft)

A — Raymond minimum length (ft)

A — Raymond maximum length (ft)

B — Raymond minimum width (ft)

B — Raymond maximum width (ft)

A = Length. B = Width, which becomes standing height on the saw. C = Wall thickness / loaf depth, inherited from the selected loaf rather than entered here. Raymond cube is not limited.

Loaf layout split allowance (in)

New demand notification emails (comma-separated)

These recipients are emailed automatically whenever a new Quarry Block Demand is entered.

Minnesota blocks may vary within these ranges and rotate 90°. Every block must stay below the configured cube limit at the actual loaf thickness. Minimum dimensions are never reduced to meet that limit.

Stock retains the actual wall thickness. Targets are never enlarged to absorb leftovers. Gray material is remnant or split loss. Re-run Auto Layout after changing these settings.

Local data

This prototype saves to this browser only. Export gives us an easy backup and migration path.

Quarry records are stored in the separate Quarry database. Signed-in devices refresh when idle. Export a backup before importing or resetting shared records.

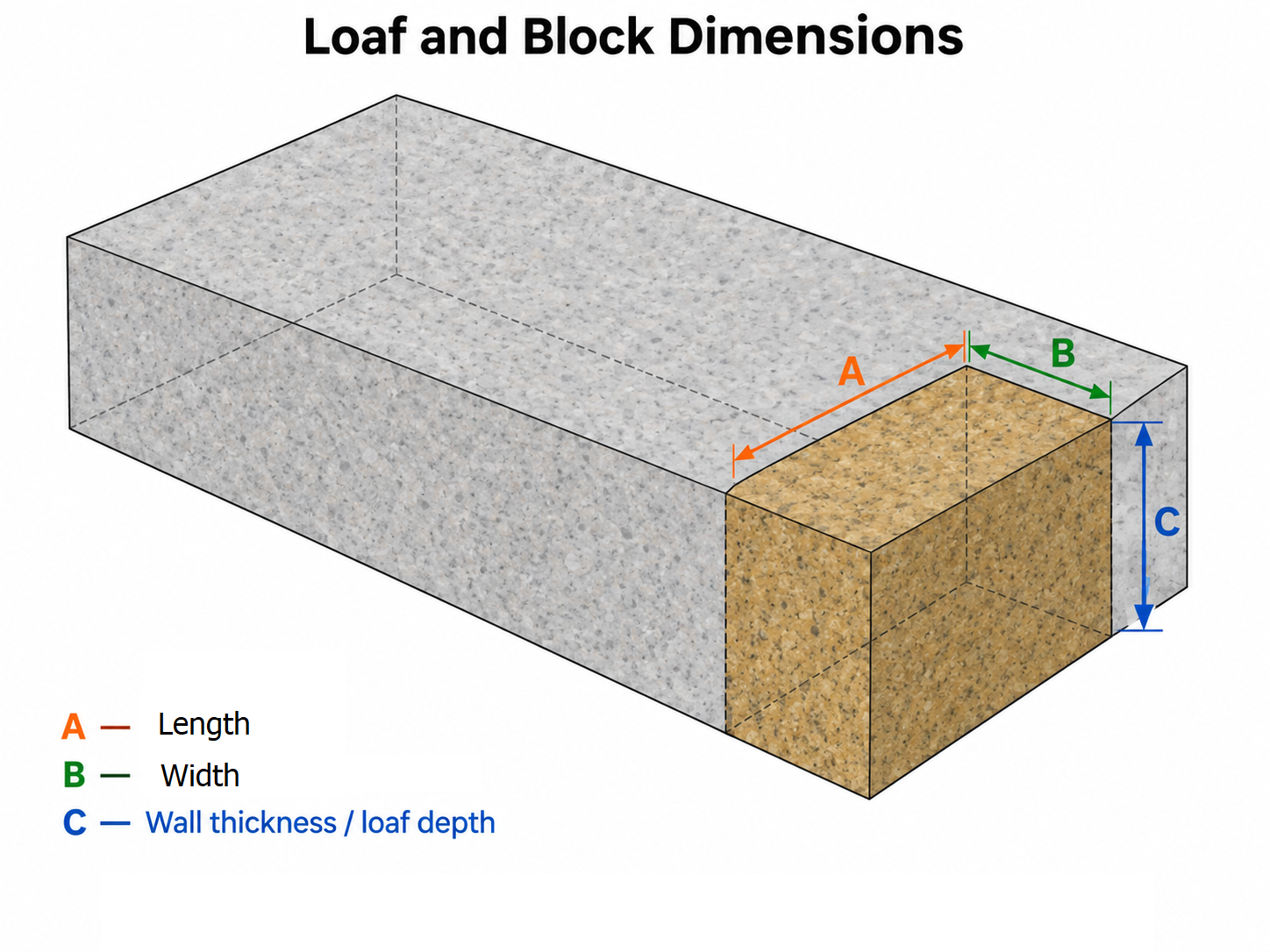

Loaf and block dimensions: A is length, B is width, C is full wall thickness or loaf depth. — **A — Length** · **B — Width** · **C — Wall thickness / loaf depth**
B becomes standing height on the saw. C is inherited from the loaf.

Legacy demand import

The old Quarry Demand Report is not driving the data model.

For this MVP, use manual demand entry or JSON import. A Minnesota report/CSV importer can be added once we know the export format reliably.

Rules in this build

• Blue does not automatically satisfy Green, and Green does not satisfy Blue.
• By Block Size demand requires minimum length and width. Loaf depth is inherited from the selected loaf.
• If quantity and cube are both entered, both must be satisfied.
• A block counts toward demand when its physical block number is allocated.
• Rejected blocks automatically stop satisfying demand.
• Block numbers are never generated by this application.
